Emergency Escape Parachute Systems
IrvinGQ® continues its history of preserving the life of aircrew with the design and manufacture of a series of emergency escape parachutes
On rotary or light fixed wing aircraft, these systems enable aircrew to bailout in the event of an emergency at altitudes up to 10,000ft amsl
Aircraft compatibility
The parachute assemblies have been designed for aircraft such as:
Sea King ASaC7 Helicopter
Firefly T67 – training aircraft
Tutor T Mark 1 – training aircraft
Vigilant T1 – gliders
viking T1 – gliders
RNAS Swordfish
Canopies

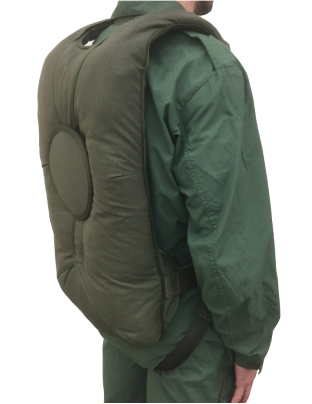

IrvinGQ® military emergency parachute assemblies utilise various high-performance multi-conical parachute canopies, some similar to those used in ejection seat systems together with a variety of ergonomic harnesses that fit a wide spectrum of aircrew sizes. The slim parachute packs provide user comfort, while permitting ready egress from an aircraft in an emergency via its canopy, door or side window.
Technical specifications
BMk72 PART NO | IAC-C14644 (suitable for light aircraft, gliders etc.) |
H112 CANOPY FLYING DIAMETER | 7.2m (23ft) |
Maximum All Up Mass (AUM) | 136kg (300lb) 143kg (314lb) Sea King Helicopter @ 120kt |
Min Suspended Mass | 35kg (77lb) |
Max Deployment Altitude | 10000ft amsl |
Max Deployment Speed | 150kt (77m/s; 278km/h) |
Max opening altitude | 10000ft (3,657m) amsl |
Minimum deployment height (point of ripcord handle operation) | 150m (500ft) (agl) |
Rate of descent | 5.4m/s (17.7 f/s) at 115 kg (254 lb) 5.9m/s (19.3 f/s) at 136 kg (300 lb) |
Pack dimensions | 520 x 380 x 90mm |
Nominal assembly weight | 7 kg (15.4 lb) |
Finite Life (Life may be extended to 15 yrs subject to surveillance by IrvinGQ) | 10 years* |
IrvinGQ Emergency Escape Parachute Systems are Engineered to Save Lives
Bailout over water is made safer through the integration of water pockets in the canopy promoting the rapid collapse of the parachute and preventing the user from being dragged in the water. The parachutist can steer towards the safest landing spot thanks to steering toggles connected to the suspensions lines adjacent to net panels the rear of the canopy, which provide nominal forward speed and rotation.

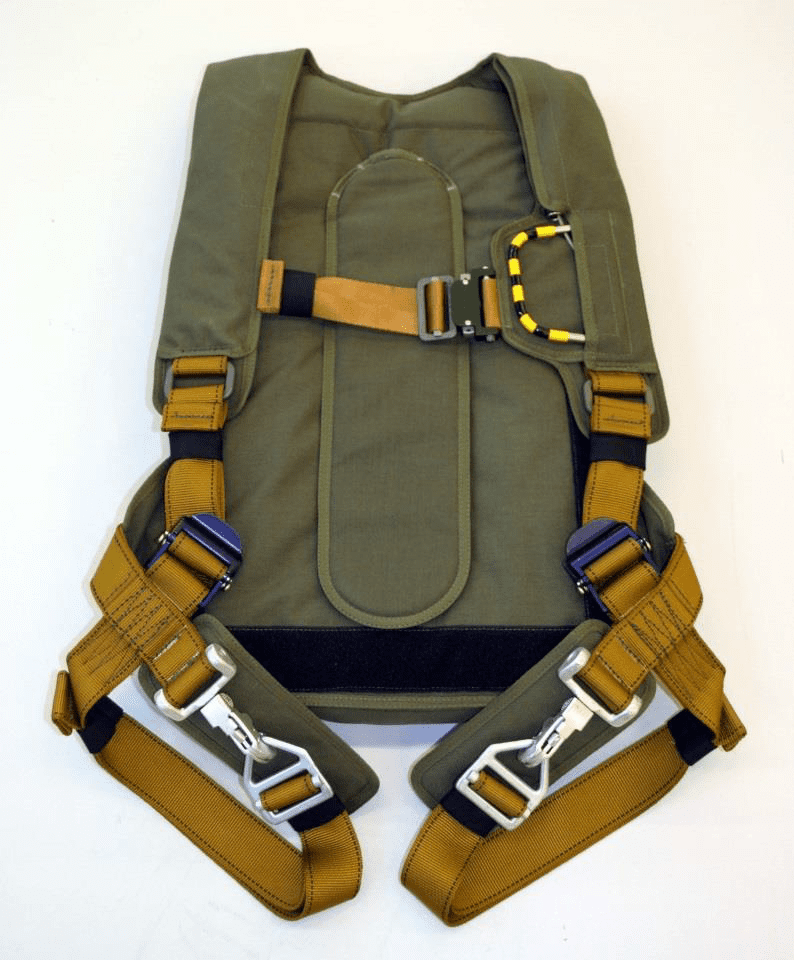

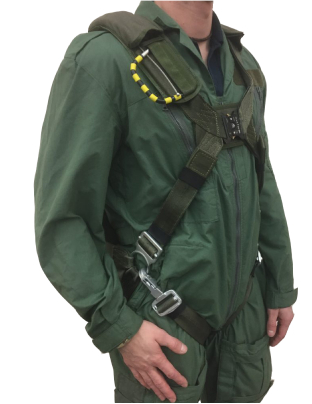

A variety of harnesses types provide a suitable and comfortable fit for all user sizes. These incorporate three-point, split-saddle closure and where appropriate include ground canopy releases.
Variants of each assembly are designed to be compatible with other aircrew equipment such as life preservers, restraint harnesses, and Personal Survival Packs (PSP).
